Construction Day 7
|
|
The morning was occupied with packing Christmas presents off to the family. Early afternoon was occupied with DIY at daughter's house so workshop did not start until 15:00 hrs.
So what did I achieve in the afternoon / early evening.
|
|
|

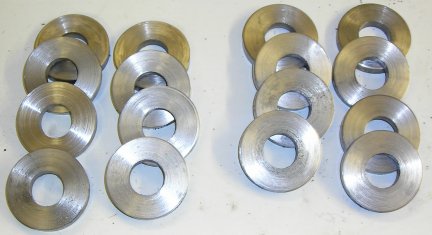

The wheel support have to be machines
to a dead size AFTER welding and thus all the wheel supports made yesterday
are no good.
Here are the replacement ones.
|
|

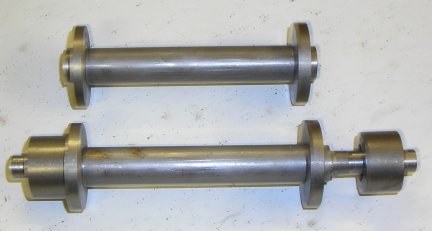

So that the wheel support will be
held in place during the welding I have made up a 1/2" bar reduced by .2mm
at each end for clearance which is fitted with pieces that will be NUTTED
down from each end.
There remains to run a die down the bar and make up two nuts. The ends of the tube have been gently counted sunk to take off the burs from the machining. |
|
|
|
|
|
|
|
|
|
|
|
