Construction Day 23
|
|
Mid morning start afternoon finish
|
|
|

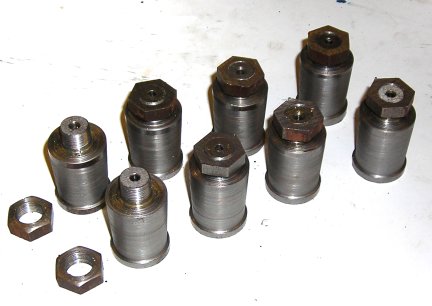

The buffer stocks were threaded 1/2" 26TPI and the nuts made. |
|

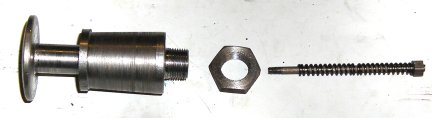

Here is the buffer showing the components parts |

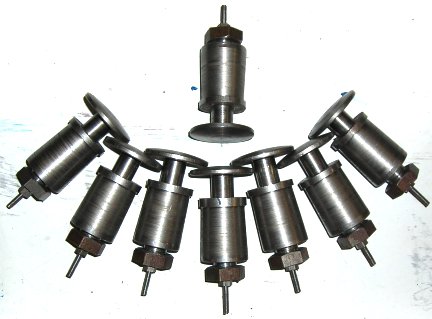

The full set of buffers. It was found that the spring retainer had been made 5mm too long so the excess thread was cut off. It was only made too long for at first it was thought that a long throw of the buffer was fine but on reflection not so !! | |

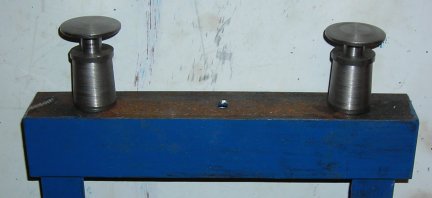

The completed buffer in place for the first time | |

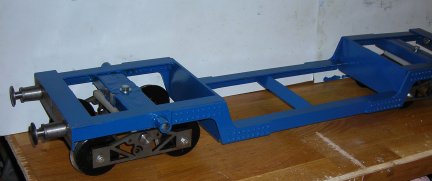

The assembled truck lees breaking system and leg supports | |

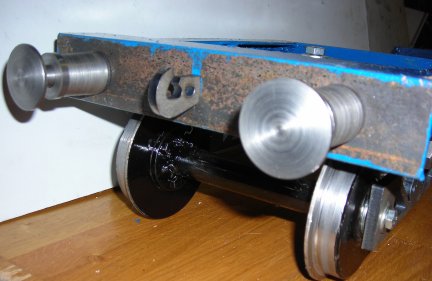

The buffer beam - buffers and hook. | |

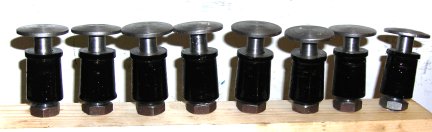

The buffer now all painted black | |

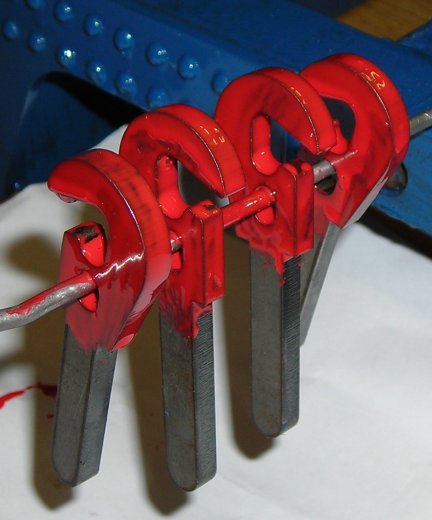

The hooks with their first coat of paint .. May be the hook will need rounding off on the leading edge. | |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
