Light
flasher
|
|
|
|
 |
When running a locomotive at night
it is necessary to have a red tail light.

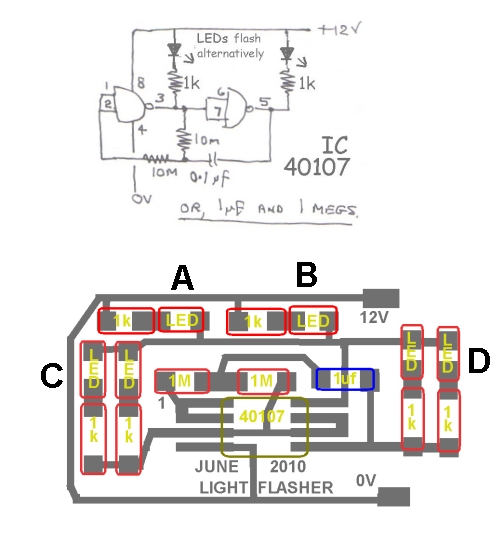

The flasher is easily build on PCB and the LED can be made to flash in any combination you wish dependent upon how you wire them. LEDs A & B are on all the time and those connected to C & D flash alternatively about once a second.
Please only build this item if you have an understanding of electronics !!!! |
If you have any comments / questions about the project then please email me ...
|
|
