Construction Day 2
|
|
|

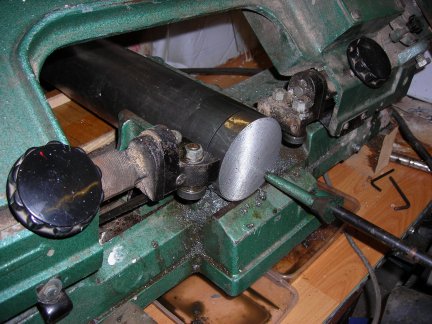

The band saw was given a good clean
and the right angle between fence and blade checked and necessary adjustment
made to ensure as far as possible a square cut horizontally.
The gap in the roller bearings supporting the blade was also checking to ensure as far as possible a square vertical cut. |
|

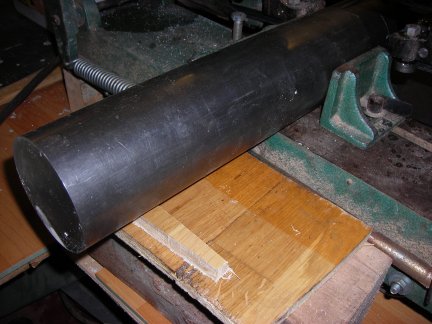

The billet of steel is so heavy,
3 1/2" round bar 400mm long, that a support had to be arranged to take the
weight.
Consideration is to be given as to how to support longer item but of less weight. I might even decided to buy a commercial feed roller !!! |
|

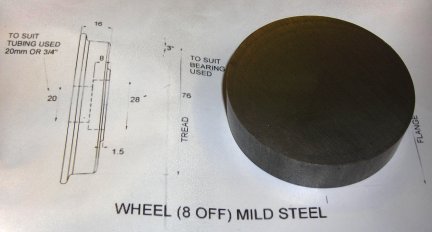

The first wheel blank is cut and is the right size for the next stage with near parallel sides. |
|

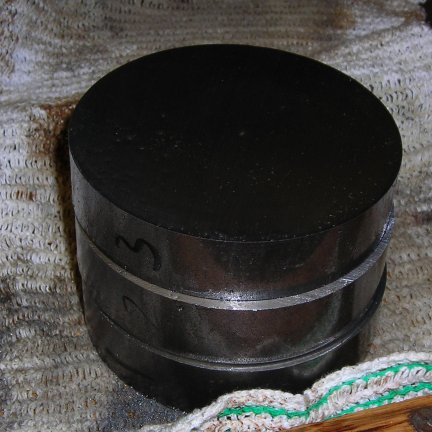

After 90 minutes of running the saw three completed wheel blanks had been cut. With the saw motor rather warm it was decided to give it a rest and go and meet another member of the team, John, for coffee. |
|

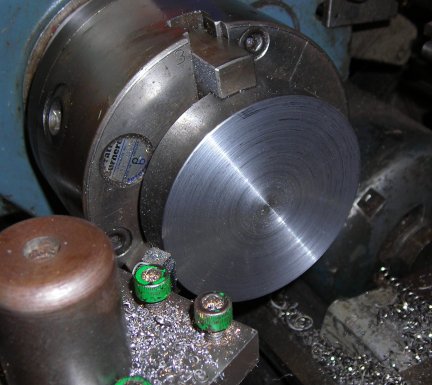

The back of the eight wheel blank and last for the first truck has been machined up. |
|

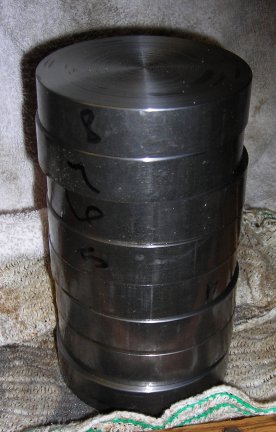

The stack of all eight wheel blanks not bad for one day - finish at 21:00 !! |
