Construction Day 16
|
|
Late afternoon and into the evening
|
|
|
Paul came round in the afternoon
and we spent about 4 hours welding the chassises together.

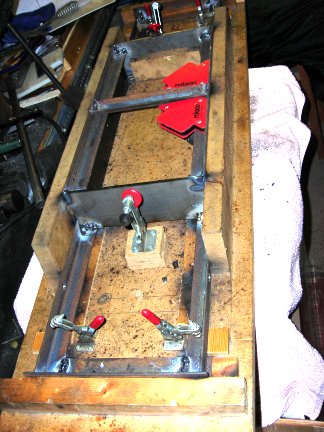

The picture shows the second chassis without the cross pieces which because we could not obtain 50x25mm box section has had to be fabricated. |
|

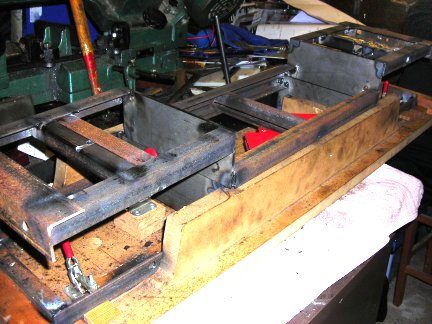

The first chassis is stacked on the second chassis. |
|

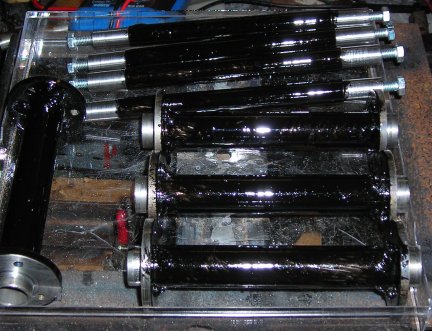

Early evening I decided to tap the ends of the first 4 wheel shafts and to paint them black, then I looked round for something else to paint so do the centre sections. |
 |

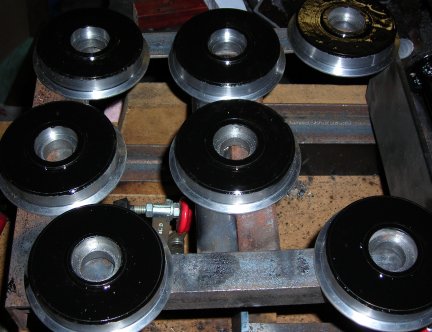

Then I thought let's paint the wheels being careful not to get the paint in the location of the bearing and not on the tread - only the outer face side was painted. |
It is hoped to complete a basic truck in time to put it on the track on Sunday - New Year's eve and to be able to fully workout the design of the leg supports. |
|
|
|
|
If you have any comments / questions about the project then please email me ...
|
|
