1st October
2020

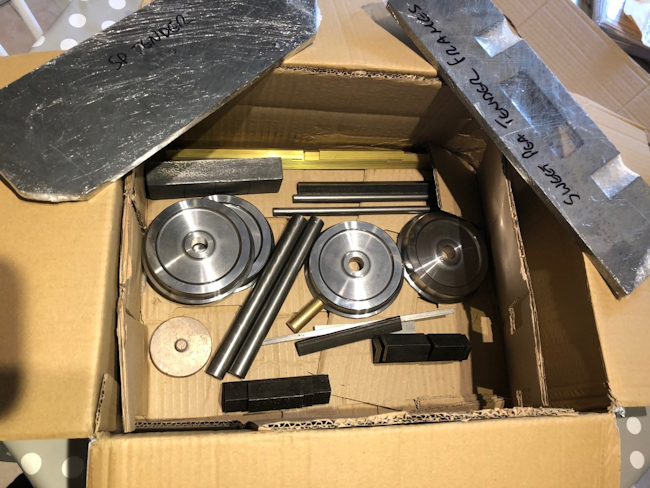

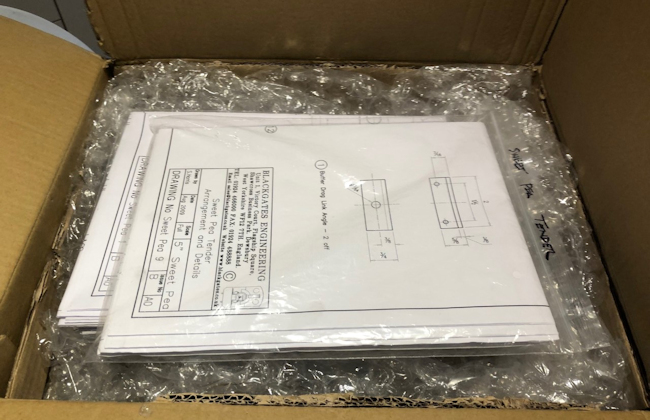

The two parcels of materials arrived from Blackgates
yesterday and very well packed they were too. |
|
|
|

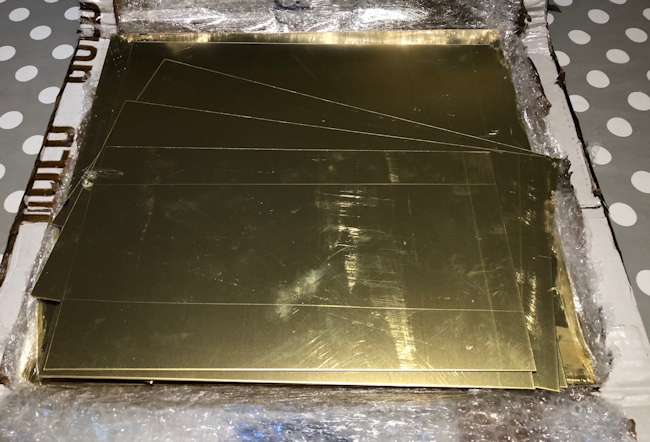

| and all the
brass sheets !! |
|
7th October
2020

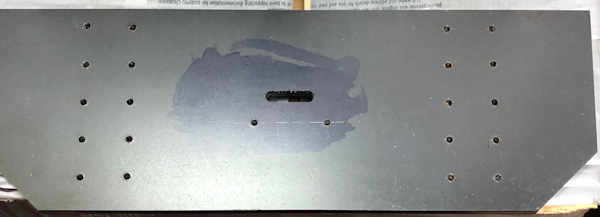

I started by marking out where holes need to be drilled
measuring all holes from one side to enhance accuracy.

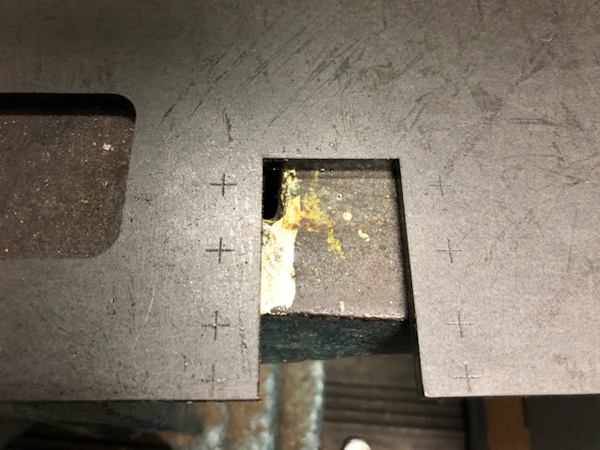

Normally marking fluid would be applied but the laser
cut material in the kit had also been laser marked where
the holes had to be. So the marked positions were centre
punched.
|
|
|
|
|
8th October
2020

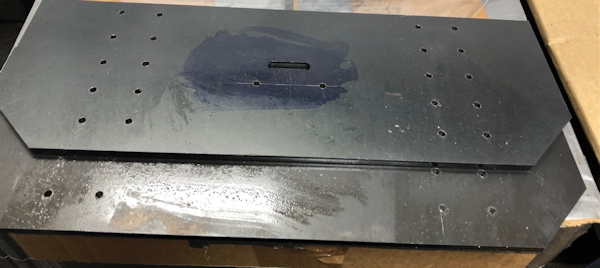

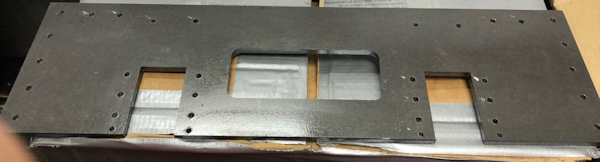

Drilled the buffer plate which will then be bolted to
the matching part and drilled through
|
|

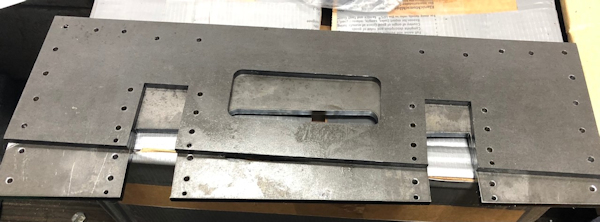

And drilled
the frame plate.
|
|
9th October
2020

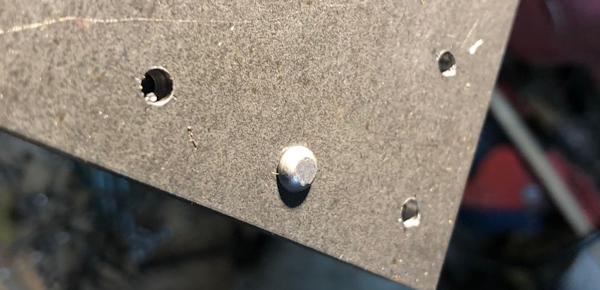

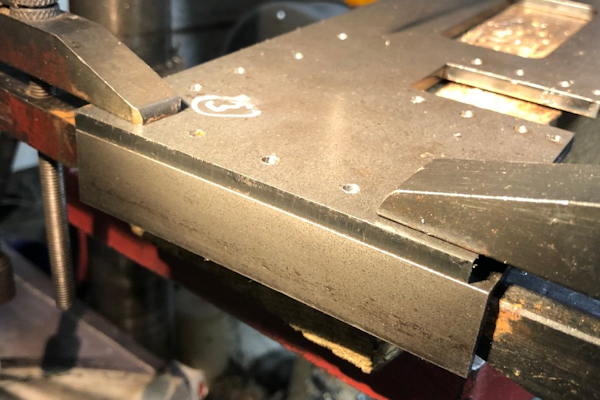

Today the two sections were aligned and held with
engineer's clamps and two holes drill 1/8" to take two
rivets to hold the position whilst drilling
|
|
Then the pairs
of plates were drilled through using a drop of cutting
fluid in each hold.
|
|
and then the
buffers beams
|
|
10th
October 2020
At the start there were two machine clamps in place and
the two holes for the nuts and bolts were drilled and
then bolts placed and clamps remover
|
 |

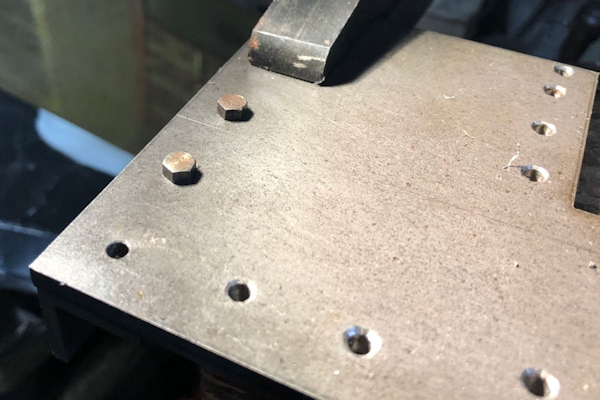

| Clamp removed
and two bolts fitted |
|

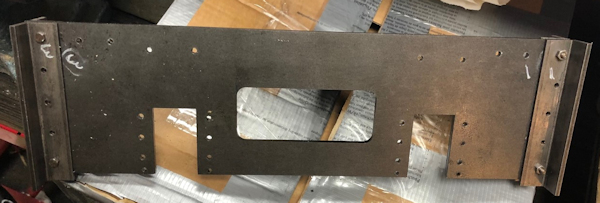

| First
frame completed |
|

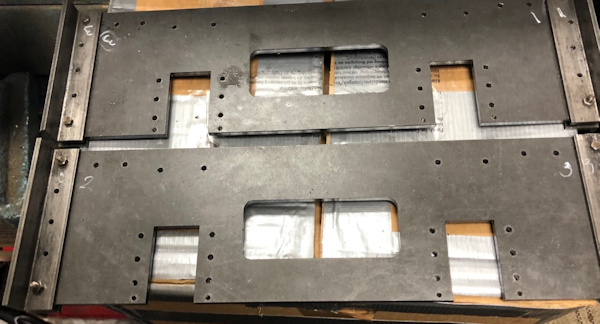

| Now both
completed. |
|
|
|
