The building of a Stuart S50 Engine

Connecting Rod

4th October 2018

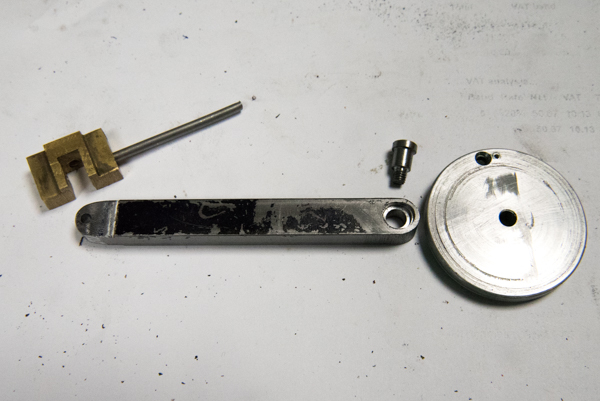

Today I successfully made up the connecting rod with the little end and big end, the big end has been machined to form a recess for the big end fixing. The crosshead was cross drilled and fits the little end successfully.

The big end fixing was also made.

The last item to do was drill and tap the Crack which now needs to be cut to shape

5th October 2018

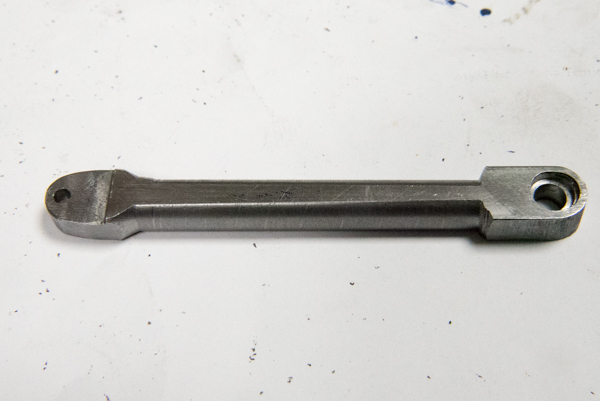

The completed connection rod.
