The building of a Stuart S50 Engine

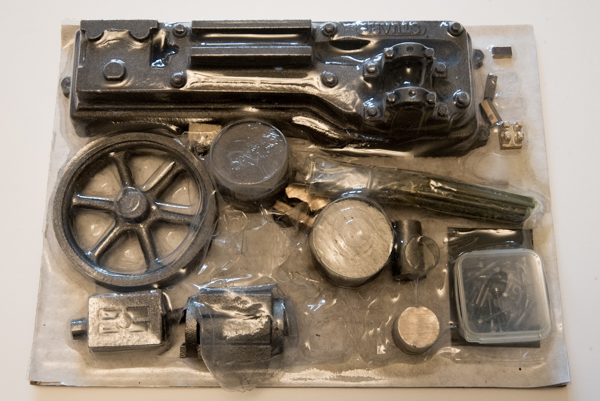

The Castings

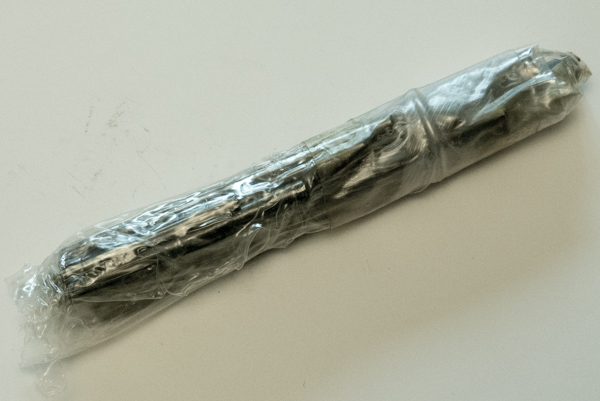

The castings were supplied in a shrink wrapper to make sure that nothing became lost.

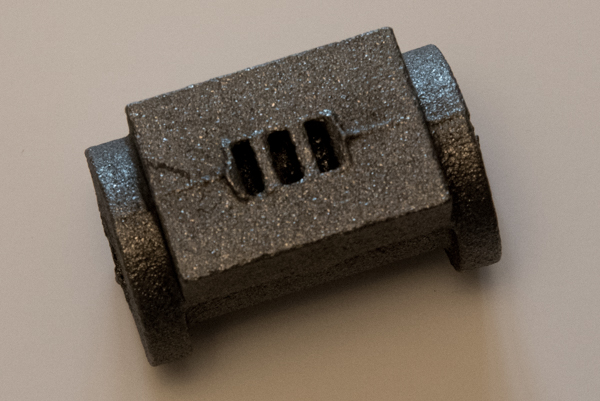

The cylinder

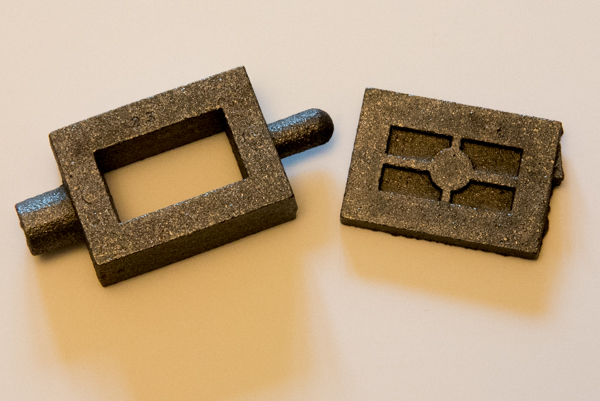

The steam chest and cover

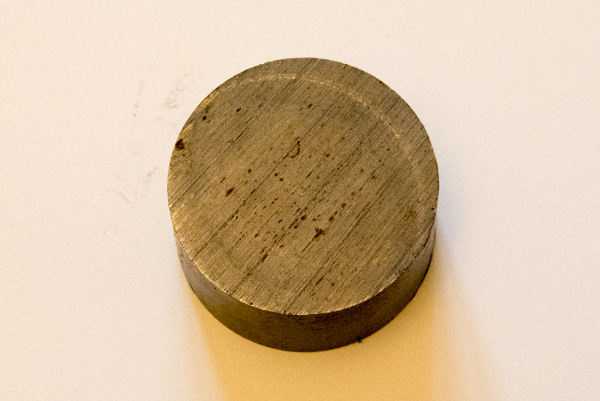

Eccentric Blank

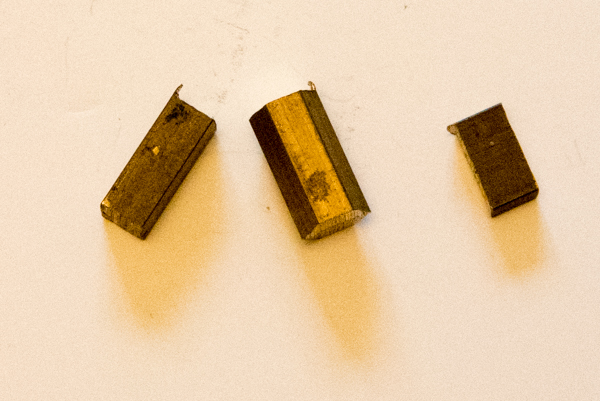

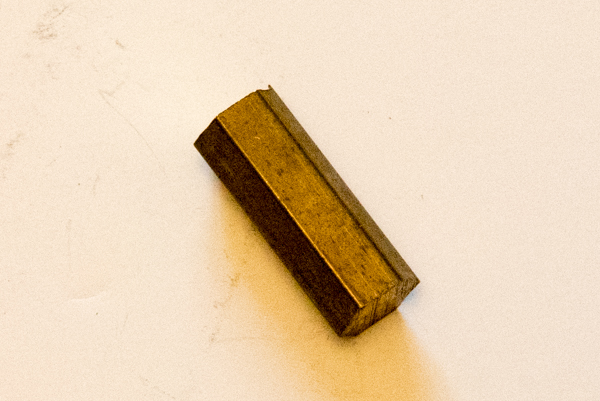

Hex bar in Brass

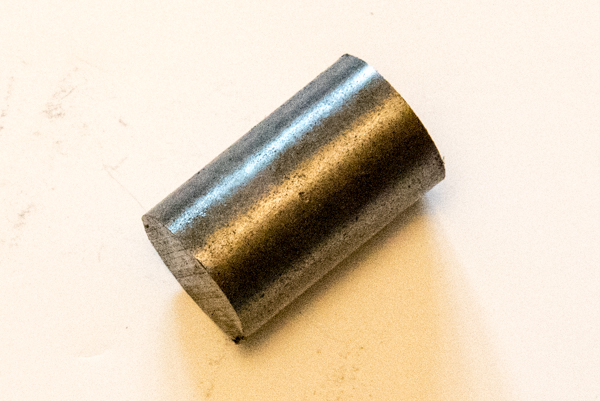

Caste iron for the cyliner end caps.

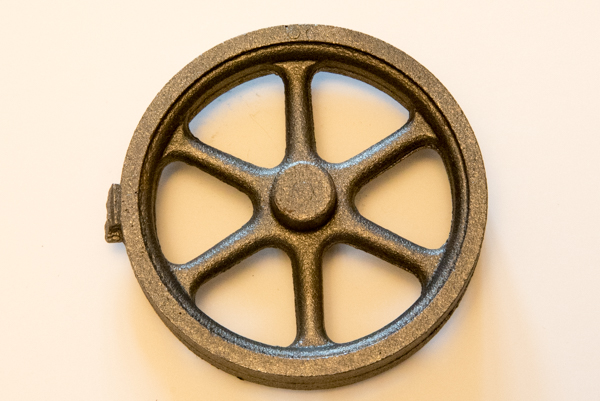

The Flywheel

A piece of Aluminium to cover the cylinder

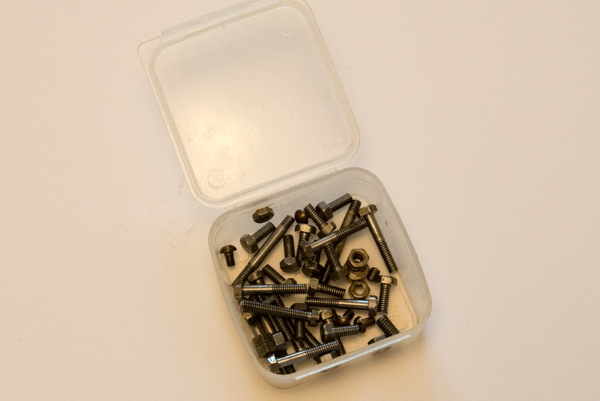

A box of nuts and bolts

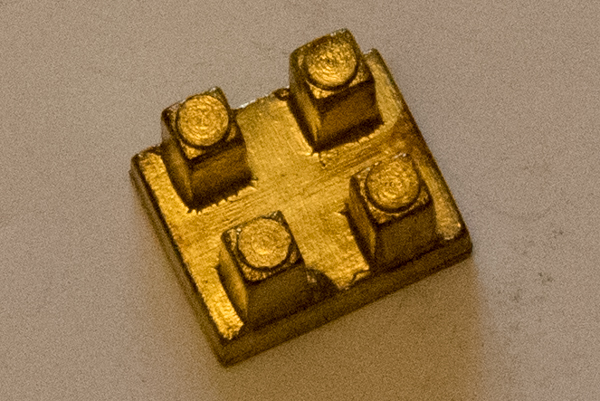

The valve

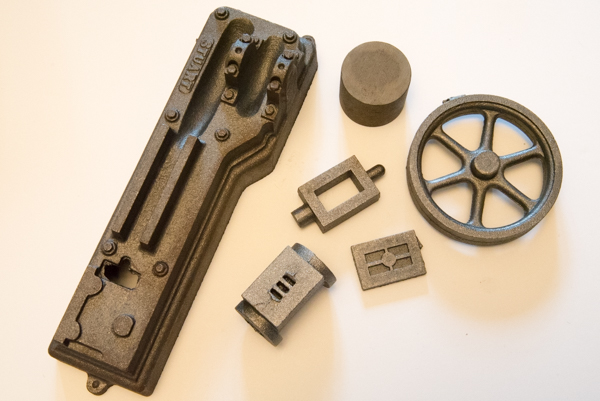

All the Caste Iron Parts
